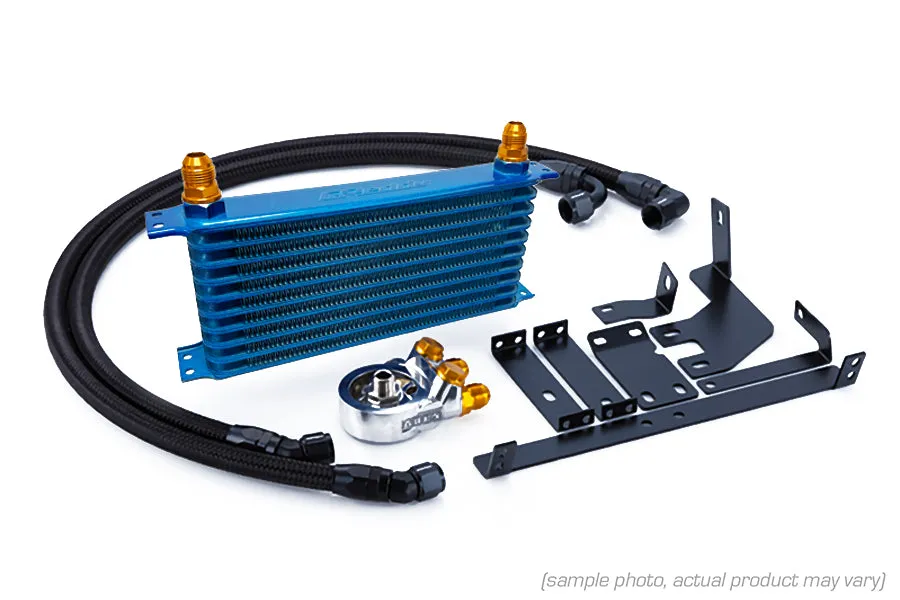

GReddy Standard 10row Oil Cooler Kits - Complete bolt-on engine oil cooler kit with all necessary hardware: , thermostatic , lines fittings and mounting. (also see for more options)

- ZN6/ZC6 FRS/BRZ "Zenki" (FA20) - 10row (Pos: Radiator Right) Block M20xP1.5 Filter 3/4-16UNF
- ZN6/ZC6 86/BRZ "Kouki" (FA20) - 10row (Pos: Radiator Right) Block M20xP1.5 Filter 3/4-16UNF
- GXPA16 GR Yaris (G16E-GTS) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
- AE111 Corolla (4A-GE) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
- AE86 Corolla (4A-GE) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
- BCNR33 Skyline GT-R (RB26) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
- BNR32 Skyline GT-R (RB26) - 10row (Pos: LF Bumper) Block/Filter 3/4-16UNF
- BNR32 Skyline GT-R (RB26) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF
- AP1 S2000 (F20C) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
- DC2 Integra (B18C) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
- EK4 Civic (B16A) - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
- FD2 Civic Type R (K20A) - 10row (Pos: In front bumper) Block M20xP1.5 Filter 3/4-16UNF
- FK8 Civic Type R (K20C) - 10row (Pos: Under the engine) Block M20xP1.5 Filter 3/4-16UNF
- ND5RC Miata (P5-VP - 10row (Pos: In front of Radiator) Block M20xP1.5 Filter 3/4-16UNF
12094605 - ZC21S/ZC31S Swift Sport (M15A/M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094603 - ZC32S Swift Sport (M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094604 - ZC32S Swift Sport *TK (M16A) - 10row (Pos: Beside Radiator) Block/Filter 3/4-16UNF
12094609 - ZC33S Swift Sport (K14C) - 10row (Pos: In front of Radiator) Block/Filter 3/4-16UNF

When the temperature inside the engine rises excessively due to sports driving, it adversely affects the oil used for lubrication and cooling, resulting in a decrease in performance and causing engine blows. GReddy oil coolers maintain a stable oil temperature due to high heat dissipation and low pressure drop.

• By using a large-capacity core with offset fins in the core tube, it is an ideal oil cooler that has succeeded in increasing heat dissipation and reducing pressure loss.
• Sandwich blocks are used in the standard oil filter position to reduce the number of parts and ensure efficient installation.

Product Specifications

• Engine oil cooler with GReddy 10 row inner fin cores
• Oil block high mount type (dedicated oil block spacer included if necessary)

Remarks

• For 3/4-16UNF or M20xP1.5 center-bolts
• GReddy oil cooler sensor terminal (code: 12401178) included (1/8PT meter sensor can be installed)
